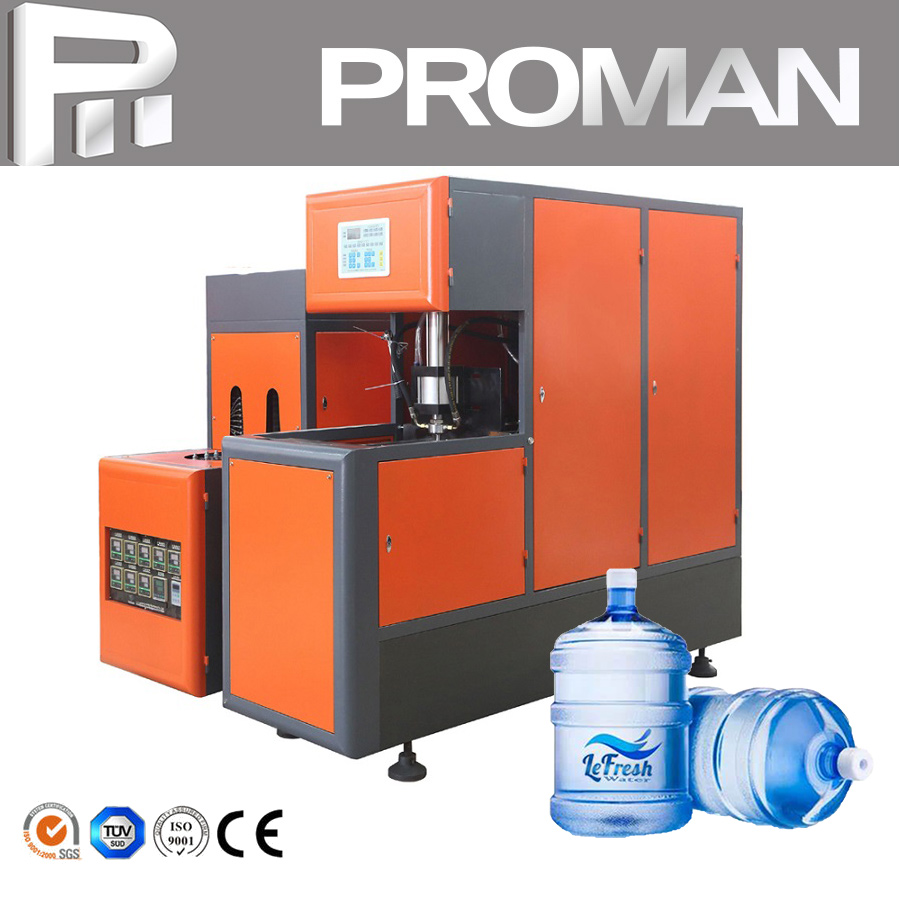

Semi-automatic Bottle Blowing Machine
| Quantity: | |
|---|---|
PM-12
Semi-automatic bottle blowing machine adopts direct pressure, icrocomputer control, two step blowing bottle.
The main blow tube blank PET mineral water bottles, beverage bottles, edible oil bottles, pharmaceutical plastic bottles, pesticide bottles, cosmetic bottles, etc..
It has various cavities and the maximum capacity of the products is 20L.
The gas path is designed to separate the gas and blowing, adopting low pressure(0.4-0.8Mpa) mould clamping, mould locking, sealing, stretching and high pressure(3-3.5Mpa) blowing form, and the gas-liquid locking structure, to not only ensure the clamping and locking action smoothly, also ensure the safety of mould and blowing quality, as a result can save the bottle perform material.
1. Produce bottle from 5L to 20L(1-2 cavity)
2. Output capacity up to 180 for 20L using one-cavity blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms
8. Operated only by one person without special training
9. Simple installation & startup adjustment
10. Waste rate of finished bottle is less than 0.2%
1. Produce bottle from 5L to 20L(1-2 cavity)
2. Output capacity up to 180 for 20L using one-cavity blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms
8. Operated only by one person without special training
9. Simple installation & startup adjustment
10. Waste rate of finished bottle is less than 0.2%
Line Flow Chart
PET preform→autoloader→reheater →molding→ bottles
| Model | PM-12 |
| Capacity(500ML) | 120BPH |
| Cavity | 2 |
| Suitable Bottle | PET Bottle ,Plastic Bottle |
| Diameter of bottle | Diameter: 55-110 MM |
| Height Of Bottle | 150-310MM |
| Suitable Cap | Plastic Screw Cap |
| Weight | 1000kg |
| Main Motor Power | 40kw |
1. Where is your factory?
Our Factory is located in Zhangjiagang City, 2 hours drive from Shanghai and 1 hour drive from Wuxi(airplane & high-speed rail). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.
2. Do you have any technical supports with your Plastic Bottle Water Filling Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
3. What's your guarantee or the warranty of the quality if we buy your machines?
We offer high quality machines with 1 year warranty and supply life-long technical support.
You're always welcome to visit our company. If you have any interest on our products. Please do not hesitate to contact us.
