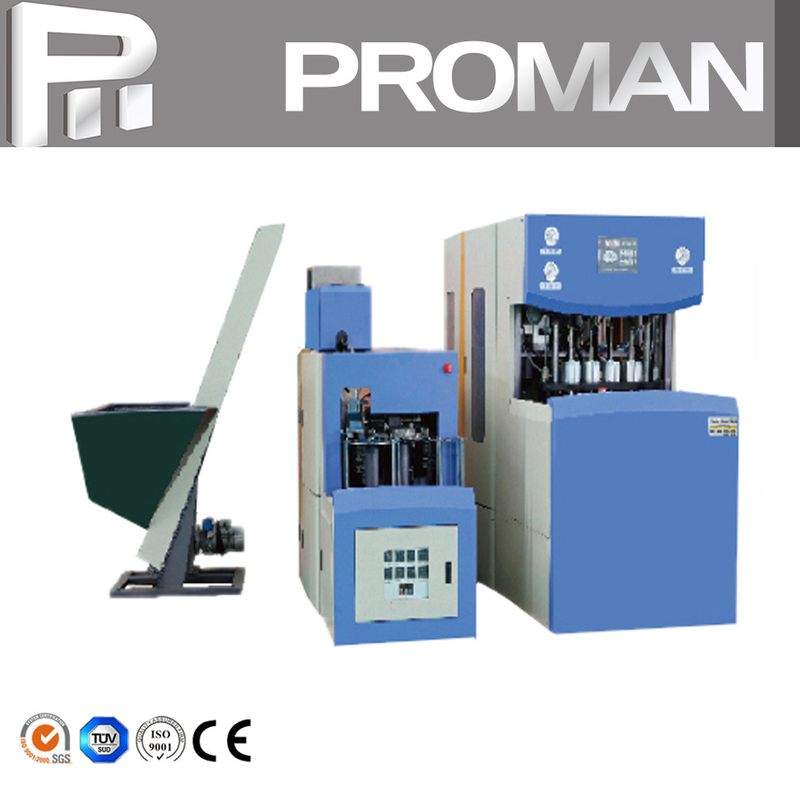

Semi-automatic 4 Cavity Bottle Blowing Machine
| Quantity: | |
|---|---|
PM-SA4
PM-SA4 semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 100-2000ml. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
· Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
· The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
· The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
· The machine can be operated in the step-by-step mode and the semi-auto mode.
· The machine is small with low investment, easy and safe to operate.
1. Produce bottle from 5L to 20L(1-2 cavity)
2. Output capacity up to 180 for 20L using one-cavity blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms
8. Operated only by one person without special training
9. Simple installation & startup adjustment
10. Waste rate of finished bottle is less than 0.2%
Line Flow Chart
PET preform→autoloader→reheater →molding→ bottles
| Model | PM-SA4 |
| Capacity(500ML) | 2000BPH |
| Cavity | 4 |
| Suitable Bottle | PET Bottle ,Plastic Bottle |
| Diameter of bottle | Diameter: 55-110 MM |
| Height Of Bottle | 150-310MM |
| Suitable Cap | Plastic Screw Cap |
| Weight | 500kg |
| Main Motor Power | 15.5kw |
1. Where is your factory?
Our Factory is located in Zhangjiagang City, 2 hours drive from Shanghai and 1 hour drive from Wuxi(airplane & high-speed rail). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.
2. Do you have any technical supports with your Plastic Bottle Water Filling Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
3. What's your guarantee or the warranty of the quality if we buy your machines?
We offer high quality machines with 1 year warranty and supply life-long technical support.
You're always welcome to visit our company. If you have any interest on our products. Please do not hesitate to contact us.
