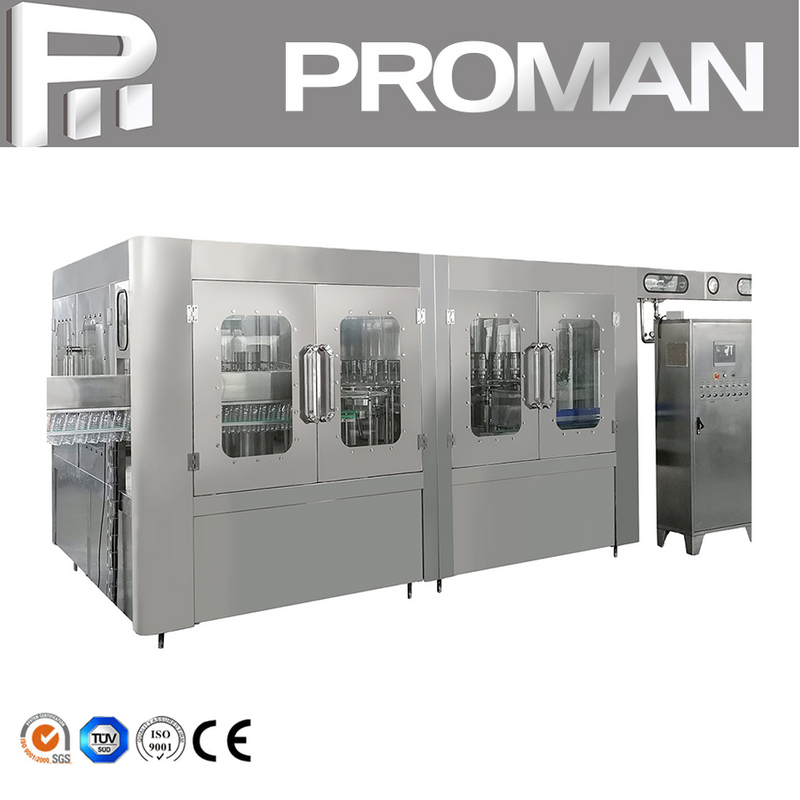

The machine is mainly used for washing, filling sealing Non-Areated carbon dioxide drink such as mineral water, pure water, non-gas wine drink and so on.
| Quantity: | |
|---|---|
DCGF32-32-12
The machine is mainly used for washing, filling sealing Non-Areated carbon dioxide drink such as mineral water, pure water, non-gas wine drink and so on. The machine design is shorten the time for the drink material contact with outside, increase the sanitation condition troughout economy benefit.
Different models can satisfy various requirement of output from 1000B/H to 15000B/H.
It adopts hanging type conveying-bottle structure to make changing bottle model more convenient. The glass bottle filling machine adopts advanced Mitsubishi programmable controller(PLC) to control the machine. After programed, then can start easy operation.
1) The overall appearance is comfortable, and the window-type structure can be used to keep an eye on the movement of the machine. If there is a problem, the machine can be stopped and checked in time.
2) PLC controller, simple and easy to operate, designed for foreign friends, allowing customers to easily navigate.
3) The whole machine material is made of stainless steel 304/316, which is very strong and guarantees the quality.
4) High filling accuracy and small error, ensuring efficiency while ensuring efficiency.
5)Three-in-one filling, the finished product is short.
6) Fully automatic production, freeing hands, reducing labor required for production, saving costs and improving efficiency.
| Model | DCGF14-12-4 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 | DCGF40-40-12 | DCGF50-50-15 | |
| Production Capacity | 2000-3000 | 3000-4000 | 5000-7000 | 7000-15000 | 10000-15000 | 16000-20000 | |
| Filling Precision | ≤+5mm(liquid level) | ||||||
| Filling Pressure(Mpa) | ≤0.4 | ||||||
| PET Bottle Specification(mm) | (bottle diameter):φ50-φ115;(height):160-320 | ||||||
| Suitable Cap Shape | plastic screw cap or crown cap | ||||||
| Total Power(KW) | 4.4 | 5.2 | 6.2 | 6.2 | 7.5 | 11 | |
| Weight(kg) | 2500 | 3500 | 4500 | 6000 | 7200 | 10000 | |
| Overall Dimensions(mm) | 2250*1650*2250 | 2600*1965*2250 | 2980*2200*2250 | 4000*2250*2500 | 4000*2250*2500 | 5500*3500*2500 | |
1. Where is your factory?
Our Factory is located in Zhangjiagang City, 2 hours drive from Shanghai and 1 hour drive from Wuxi(airplane & high-speed rail). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.
2. Do you have any technical supports with your Plastic Bottle Water Filling Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
3. What's your guarantee or the warranty of the quality if we buy your machines?
We offer high quality machines with 1 year warranty and supply life-long technical support.
You're always welcome to visit our company. If you have any interest on our products. Please do not hesitate to contact us.
