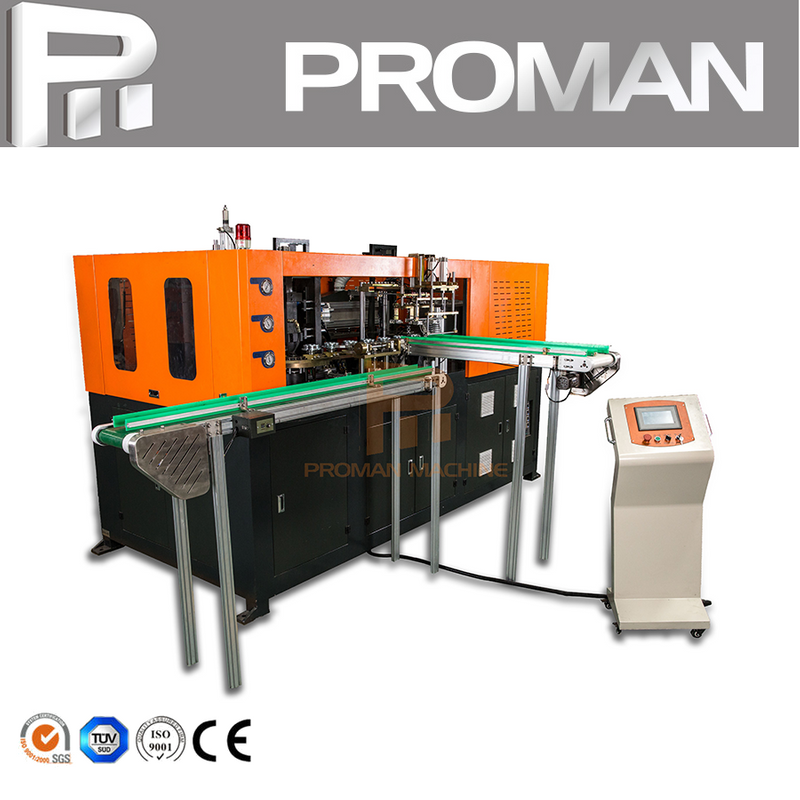

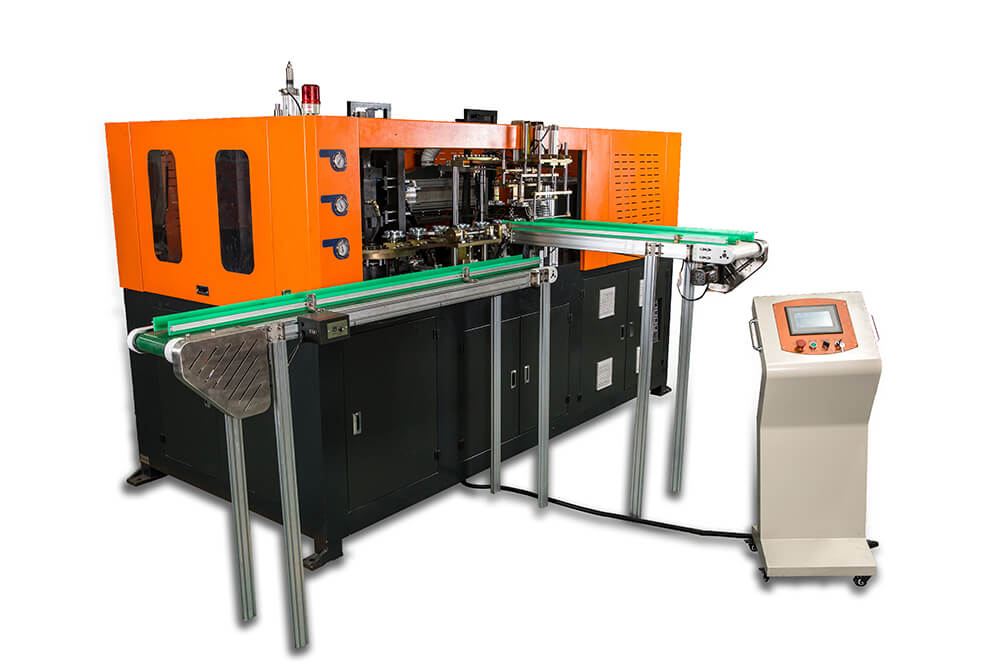

Automatic jar bottle blowing machine
| Quantity: | |
|---|---|
J2
J2 bottle blowing machine adopt servo control system, with stable and reliable structure, high speed, stable, simple maintenance, flexible and convenient mold matching etc, which can meet needs of continuous production. Use microcomputer touch screen controls and adjusts temperature, make temperature adjustment of blow molding different bottle type simple. Servo transmission system, high positioning accuracy, fast speed, good stability and reliability, no need air source, energy saving, low maintenance cost.
Features:
1. Stable performance with advanced PLC.
2. Automatic preform conveyer to save human cost.
3. Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
4. High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5. High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
6. Introduce the FESTO air cylinder to avoid contamination and noise.
7. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8. Strong clamping force with high pressure and double crank links to lock the mould.
9. Two ways of operating: Automatic and manual.
10. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
11. Contamination is avoided for the bottle body.
12. Ideal effect of the chilling with the chilling system.
13. Easy installation and starting
14. Safereliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.
Model | J2 | |
Bottle type specification
| Cavities | 2 |
Theory output | 1500BPH | |
Max.volume | 5L | |
Max. neck diameter | 80mm | |
Bottle biggest diameter | 160mm | |
Bottle maximum height | 300mm | |
Number of holder | 72pcs | |
calmping unit | 48000KG | |
mold stroke | 130mm | |
stretch stroke | 340mm | |
Bottom stroke | 30mm | |
Power specification | Light tube quantity | 40pcs |
Light tube power | 1.5KW | |
Maximum heating power | 60KW | |
All electric machine installation | 70KW | |
Actual consumption | 40%--70% | |
Air pressure specification
| Work pressure | 7-9kg/cm2 |
Low-pressure gas consumption | 1000L/min | |
Blow bottle pressure | 25-35kg/cm2 | |
Higher -pressure gas consumption | 4200Ltr/min | |
Chiller System | temperature | 10-15°C |
pressure | 0.3-0.5Mpa | |
flow rate | 80L/min | |
heating power | 5HP | |
Machine specification
| Machine size | 4.5x1.8x1.9 |
Machine weight | 4.5ton | |
1. Where is your factory?
Our Factory is located in Zhangjiagang City, 2 hours drive from Shanghai and 1 hour drive from Wuxi(airplane & high-speed rail). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.
2. Do you have any technical supports with your Plastic Bottle Water Filling Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
3. What's your guarantee or the warranty of the quality if we buy your machines?
We offer high quality machines with 1 year warranty and supply life-long technical support.
You're always welcome to visit our company. If you have any interest on our products. Please do not hesitate to contact us.
