PM-C-4

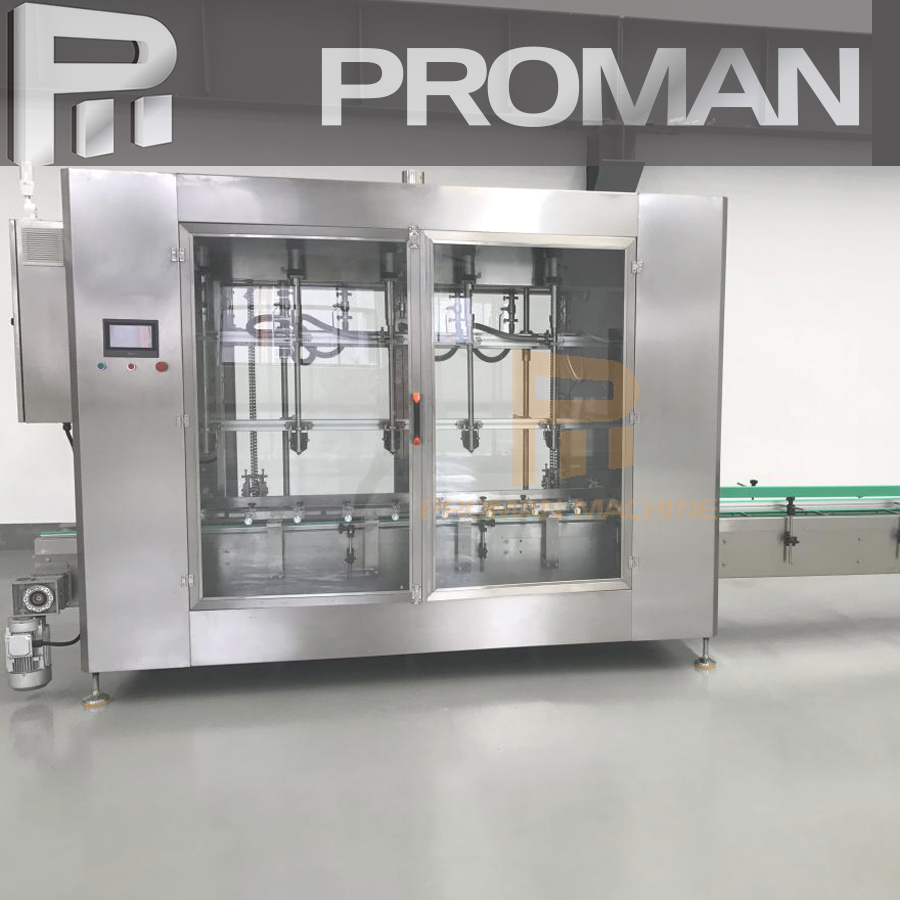

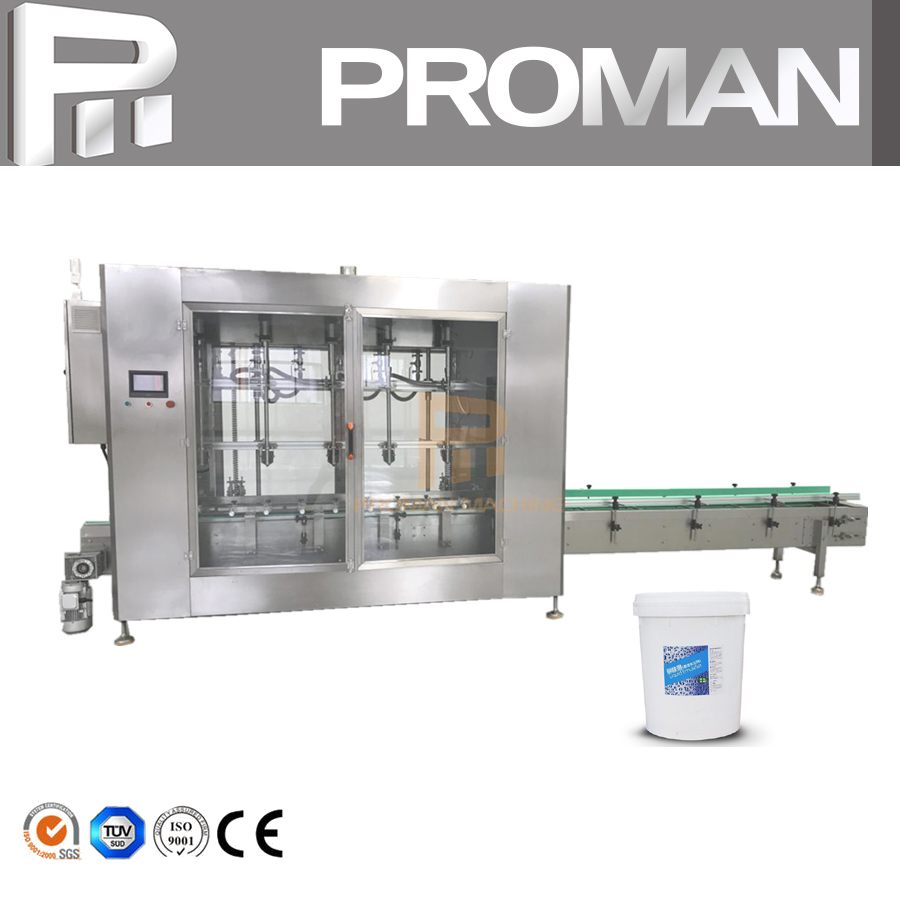

This machine is suitable for filling the fluid with a weight of 4kg-30kg. A series of operations such as counting into bottles, counting weight filling, and conveying out bottles are completed automatically. It is especially suitable for quantitative filling of liquid, edible oil and lubricating oil. It is an ideal packaging machine for food, medicine, cosmetics and fine chemical industries.
1. This machine adopts programmable controller (PLC) and touch screen for operation control, easy to use and adjust.
2. Each filling head has a weighing and feedback system, which can set the filling volume and adjust the individual micro-adjustment of the filling volume of each head.
3. The photoelectric sensor, proximity switch, etc. are all advanced sensing elements, so that there is no barrel and no filling, and the host will automatically stop and alarm if the barrel is blocked.

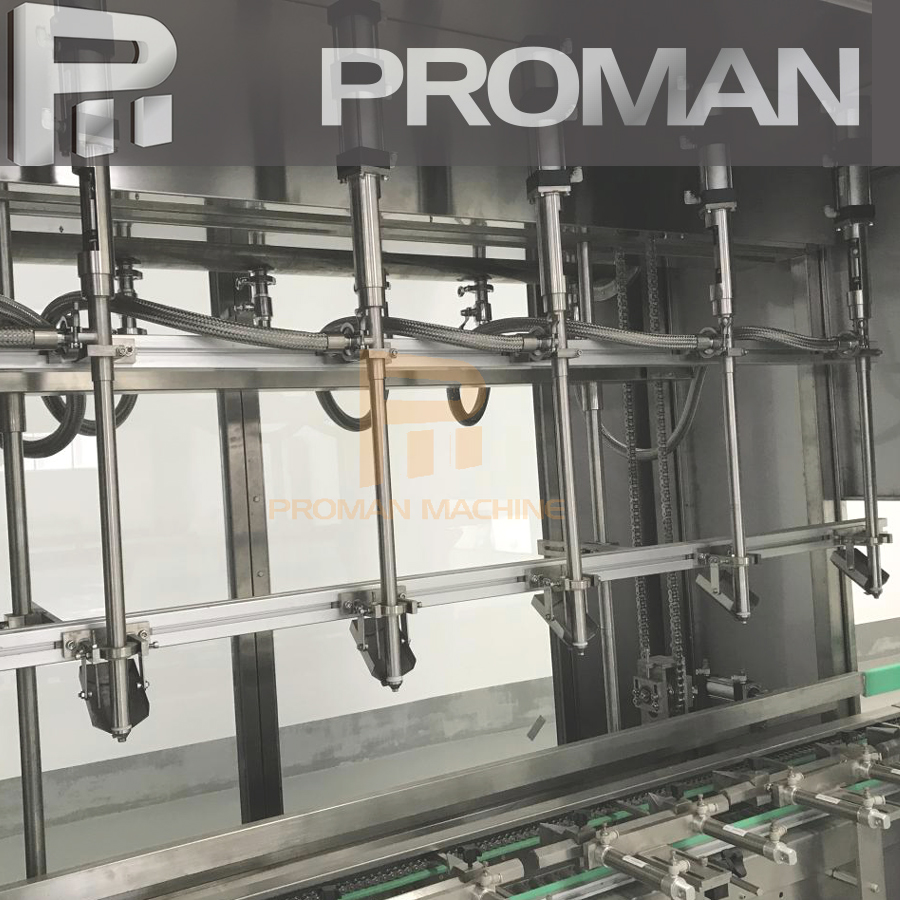

4. The filling method is submerged, which can effectively reduce the generation of foam and can meet the filling of materials with different characteristics.
5. The whole machine is manufactured in accordance with GMP standard requirements. Each pipeline side connection adopts quick installation method, which is convenient and quick to disassemble and clean. The parts in contact with materials and exposed parts are made of high-quality stainless steel materials. The whole machine is safe, environmentally friendly, hygienic and beautiful, and can adapt to work in various environments.
| Model | PM-V2 | PM-V4 | PM-V6 | PM-V8 | PM-V10 | PM-V12 | PM-V14 |
| Filling head | 2 | 4 | 6 | 8 | 10 | 12 | 14 |
| Suitable volume | 0.5-6 | 0.5-6 | 0.5-6 | 0.5-6 | 0.5-6 | 0.5-6 | 0.5-6 |
| Productivity | 500 | 1000 | 1500 | 2200 | 2500 | 3000 | 4000 |
| Working pressure | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 |
| Power consuption | 1kw | 1.1kw | 1.5kw | 1.5kw | 1.5kw | 2kw | 2kw |
Our service
Customized service
We can design the machines according your requirements(material,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3.We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty
5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6.24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
7.12 Months guarantee and life-long technical support.
8.Your business relationship with us will be confidential to any third party.
9.Good after-sale service offered, please get back to us if you got any questions.
1. Where is your factory?
Our Factory is located in Zhangjiagang City, 2 hours drive from Shanghai and 1 hour drive from Wuxi(airplane & high-speed rail). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.
2. Do you have any technical supports with your Plastic Bottle Water Filling Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
3. What's your guarantee or the warranty of the quality if we buy your machines?
We offer high quality machines with 1 year warranty and supply life-long technical support.
You're always welcome to visit our company. If you have any interest on our products. Please do not hesitate to contact us.
