【2023 Feb.16】The filling water line ordered by Ethiopian customers is under commissioning

The 6000 bottles of filling water line ordered by Ethiopian customers is under commissioning.

The process of filling water line includes:

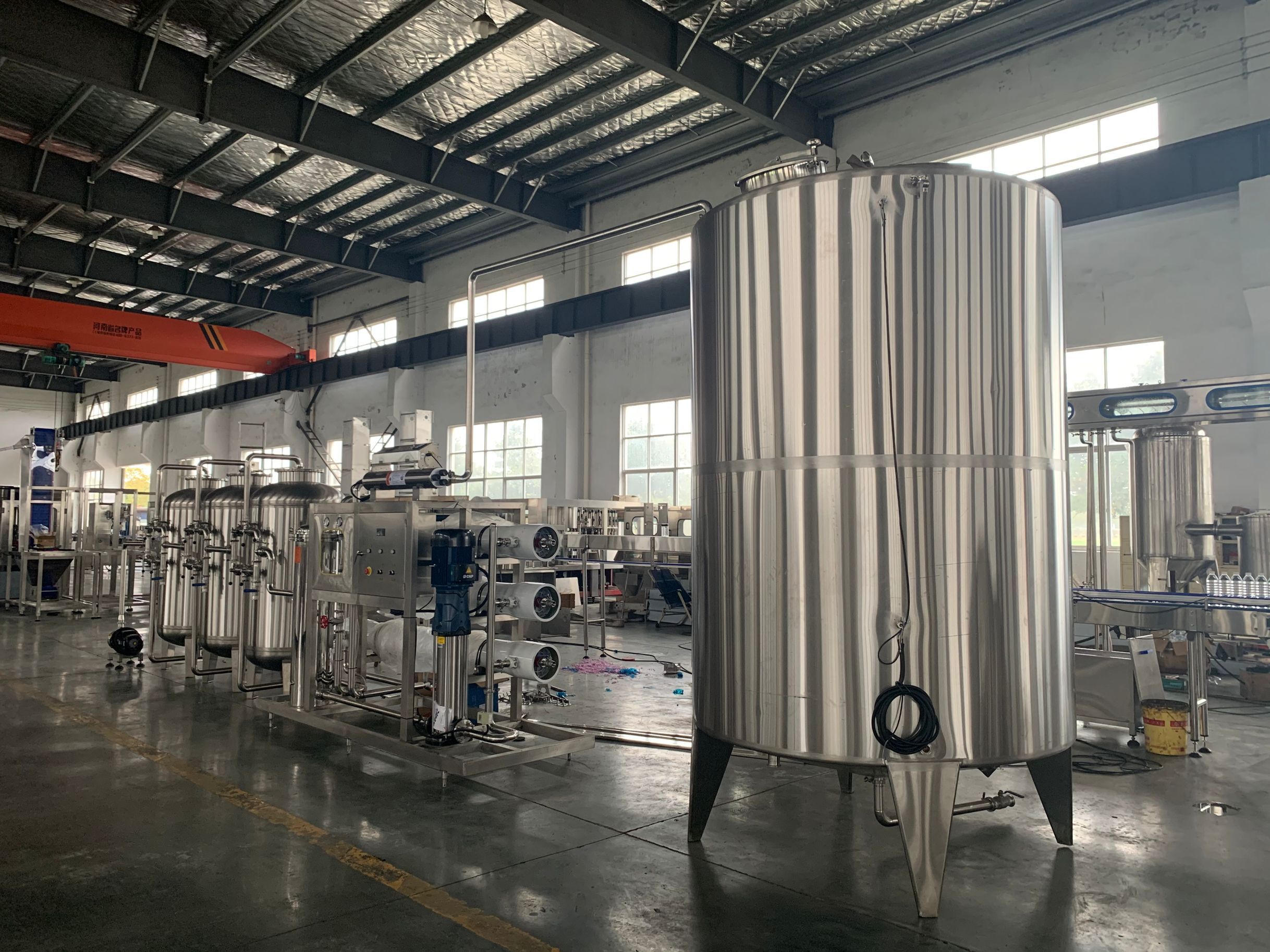

1)water treatment system

Source water tank →Source water pump→ Quartz sand filter→ Active carbon filter→ Ion soften machine→ Fine filter →Reverse Osmosis → Ozone sterilizer → pure water tank

(Description: The processing flow adopted by a set of Pure Drinking Water Treatment System depends on quality of water source and target purpose of water usage. The selected flow basically includes three parts: pretreatment system, micro processing system and terminal processing system. The Pretreatment system includes multi-media filter, active carbon filter, softener, iron-manganese removal filter, ultra-filter, micro-filter, etc. The micro processing system adopts membrane filtration and ion exchange method. The terminal processing system involves in ozone/UV sterilization, iron exchange etc.)

2) Bottle filling & packing system

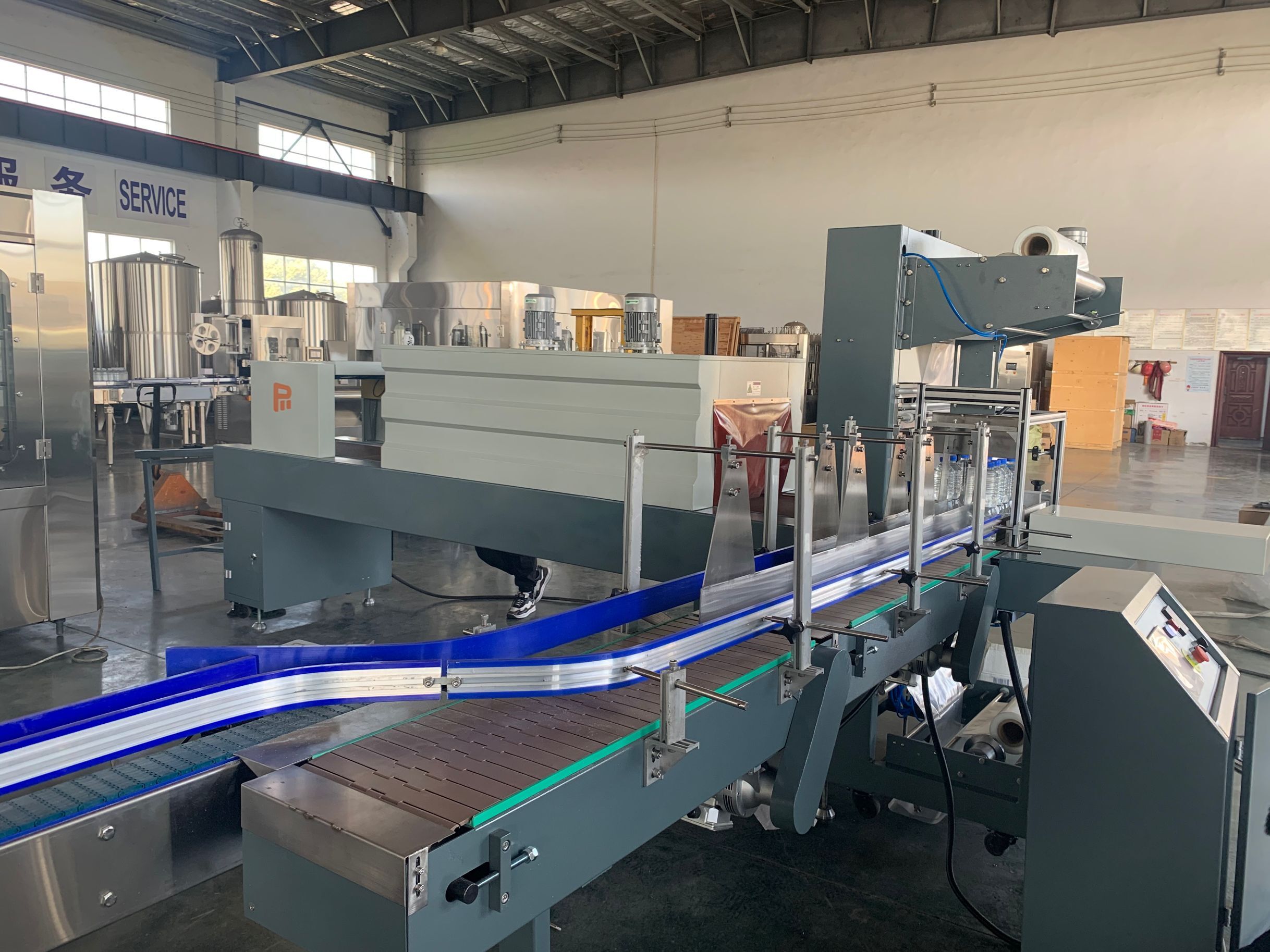

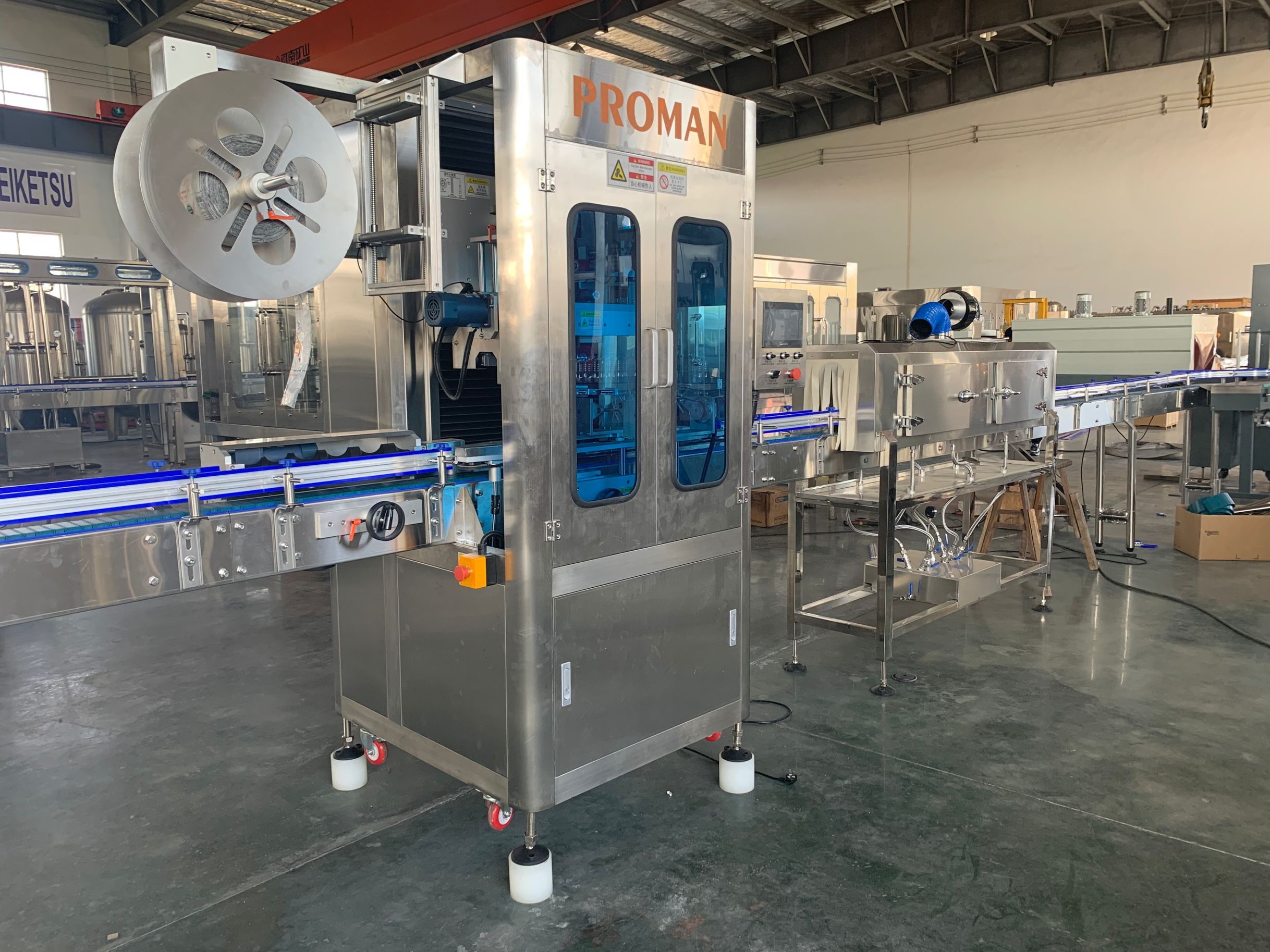

Pure water tank→Bottle blower→Air conveyor →Washing, filling & capping 3-in-1→ Light check → Full-automatic labeling machine → Ink jet machine →Full automatic PE film packing machine→ warehouse

( Description: Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There is once time of internal and external washing, the efficiency of bottle washing is high.
